Description:

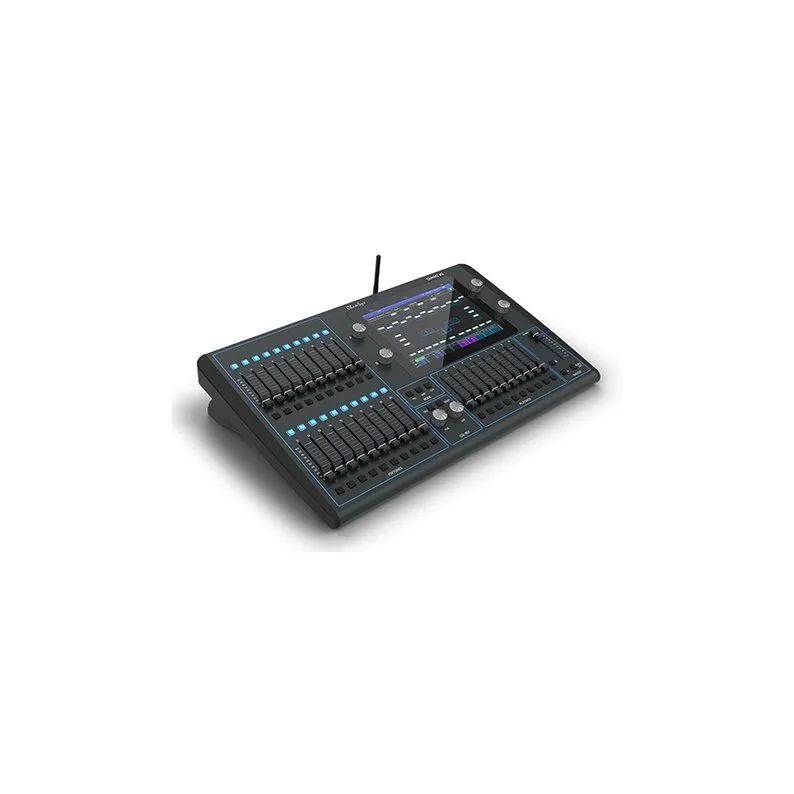

The Chamsys QuickQ 20 is a compact, user friendly lighting control console ideal for smaller conferences and breakout rooms featuring an easy-to-use touchscreen and 20 individual fixture faders. It supports 2 full universes which are accessed via the 2 onboard DMX outputs. for control of dimmer, LED colour mixing and moving light fixtures.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Andoid and Windows tablets and phones. You can easily connect the app by simply scanning the QR code on the console display.

The QuickQ 20 has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. The QuickQ interface easily leads you through setup, programming and operation of the console.

Dimensions & Weight:

• Height: 106 mm

• Width: 565 mm

• Length: 350 mm

• Weight: 5.2 kg

Included with your ChamSys QuickQ 20 Controller:

• 1 x EIC to 13a Power Supply

• 1 x 12V DC Adapter

• 1 x Tablet Stand

• 1 x WiFi Antenna

• 1 x USB Desk Lamp

• 1 x Dust Cover

• 1 x Flight Case

Technical Specifications:

• Touch Screen: 9.7"

• 2 x Universes Supported

• 2 x DMX XLR-5 Pin Outputs

• 10 x Multi Cue Playback Faders

• 20 x Multi-Function Fixture Faders - Fixture, Group and Cue

• 2 x USB Ports

Colour Control:

• A dedicated “colour control area” with Hue and Saturation encoders

• Select from inbuilt palettes and gel libraries using the touch screen

• Built in colour picker for use with LED fixtures

Networking:

• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

• Remote triggering of Playbacks and Execute items via OSC
